🌬️ Grow Room AHU Controller

Mushroom Grow Room
AHU Controller

Industrial-grade AHU automation for mushroom grow rooms — precise CO₂, humidity and temperature control, with Manual, Semi-Automatic and Fully Automatic (AI) modes for both the fresh-air damper and ventilation (VFD). Monitor and control from anywhere with live mobile access and scientific trend graphs.

🚀 Get a Quote WhatsApp Us 📄 Download Datasheet (PDF) →
💨 CO₂ 100-40,000 ppm
💧 RH 10-98%
🌡️ 0-50°C PT100
🌀 Damper: Manual / Semi / Auto-AI
⚙️ VFD: Manual / Semi / Auto-AI
🔄 Up to 3 Compressors
📈 Setpoint Ramping
☁️ Mobile + Cloud + Graphs
🧪

Field-Tested for 1 Year — 2,900+ Live Parameter Combinations

Before release, this control system was run continuously for a full year against constantly varying live temperature, CO₂, and humidity conditions — exercised across more than 2,900 distinct combinations of those parameters. That's the difference between a controller that works in a demo and one that holds up through every season, every load condition, and every edge case a real grow room throws at it.

2,900+ Combinations Tested

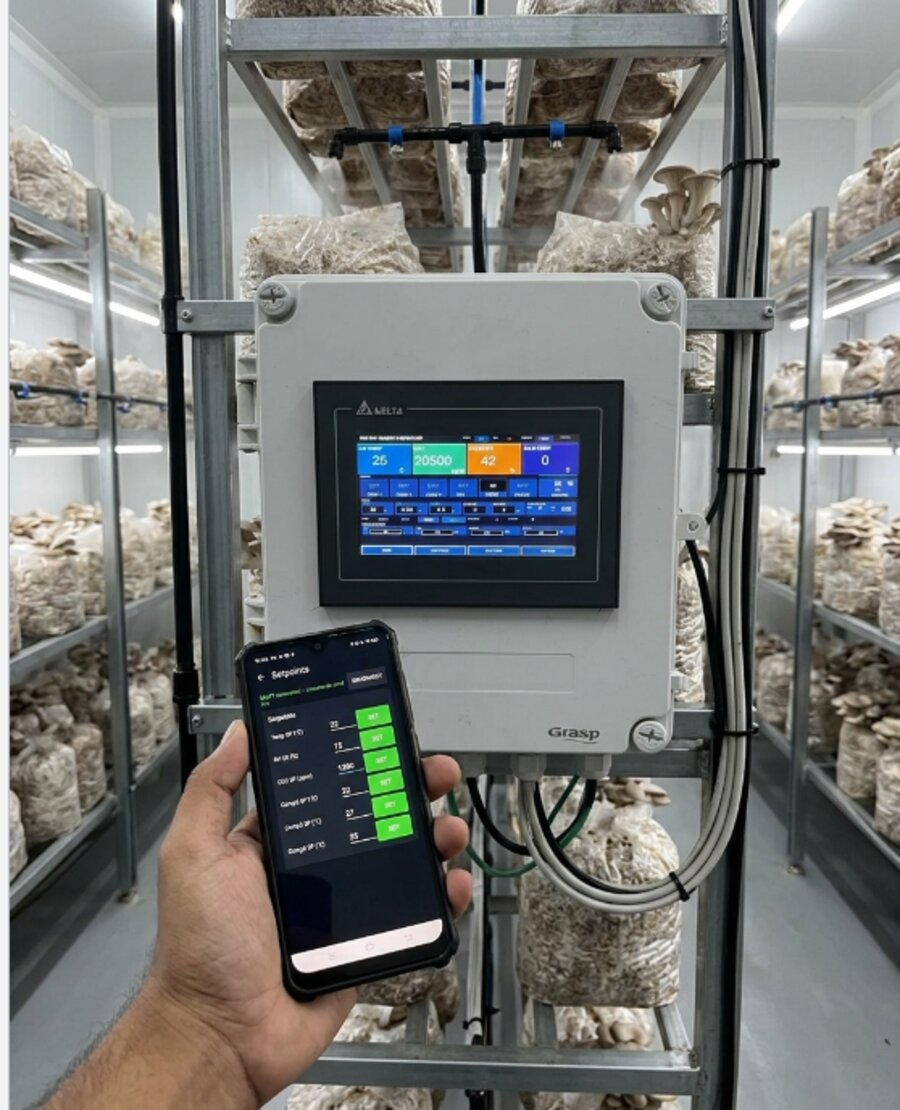

Contol-X Grow Room AHU Controller installed in a real mushroom grow room, with live mobile setpoints
// REAL INSTALLATION — GROW ROOM AHU CONTROLLER

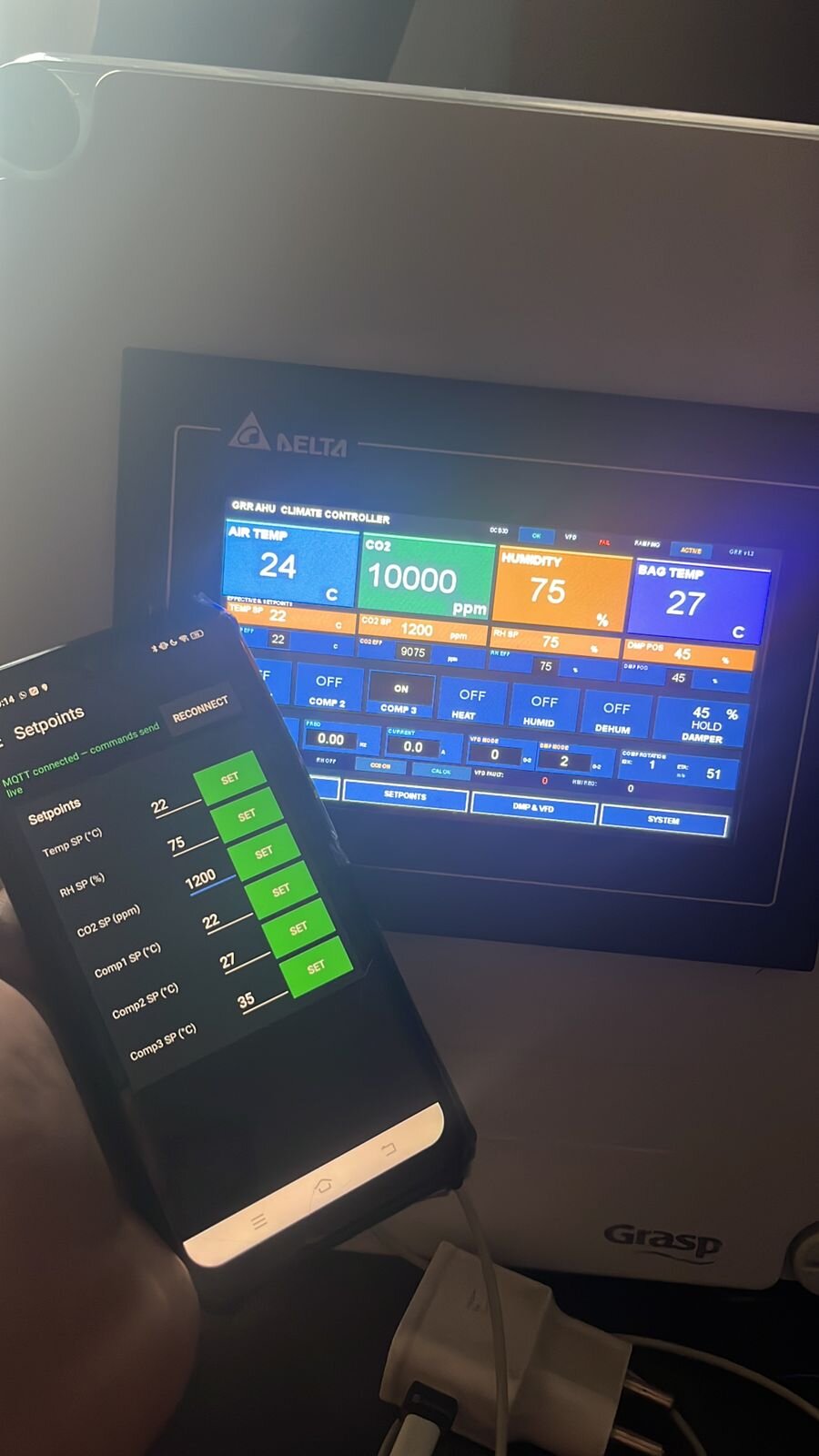

Contol-X AHU HMI panel showing live air temp, CO2, humidity, bag temp, compressor and damper status, with mobile setpoints app
// HMI PANEL — LIVE READINGS + MOBILE SETPOINTS
Environmental Sensing

Precision Sensing, Wide Operating Range

Dual RTD-class temperature probes, CO₂ concentration sensing, and relative humidity sensing — individually calibratable, covering an operating range built for real-world grow room extremes, not lab-ideal conditions.

T1
Air Intake Temperature (PT100)
// 0-50°C · HIGH ACCURACY RTD
High-accuracy PT100 RTD probe measuring grow room air temperature. Drives the active control logic for heating, cooling, and compressor staging across the full 0-50°C operating range.
T2
Substrate / Bag Core Temperature (PT100)
// FIELD-CALIBRATABLE
A second PT100 probe inserted into the growing substrate, individually calibratable in the field via 2-point or multi-point calibration — no factory recalibration required.
CO₂
CO₂ Concentration — Active Control Logic
// 100-40,000 PPM
Continuous CO₂ measurement across a 100-40,000 ppm range, far wider than standard mushroom controllers. Active control logic governs damper and ventilation response to keep respiration conditions on target at every stage.
RH
Relative Humidity
// 10-98% RH
Relative humidity sensing across a 10-98% range, driving humidifier/dehumidifier relay control with mutual-exclusion safety logic — the two outputs never fight each other.
Automated Climate Control

Damper, VFD & Compressor Staging — All Three Modes

The fresh-air damper and ventilation drive (VFD) both support Manual, Semi-Automatic, and Fully Automatic (AI) operation — with multi-priority safety logic and an anti-drift safeguard that most mushroom controllers don't have.

FRESH-AIR DAMPER
🌀

Motorized Damper Control

ManualCO₂ Semi-AutoFully Automatic (AI)
Multi-priority safety logic: temperature-emergency force-close, CO₂-emergency force-open. Configurable ramp rate for smooth, gradual positioning instead of abrupt jumps.
Anti-drift safeguard: full-duration recalibration close cycle eliminates position-sensor drift that could otherwise leave the damper physically open while reported closed.
VENTILATION (VFD)
⚙️

Variable Frequency Drive Control

ManualSemi-AutomaticFully Automatic (AI)
Load-based speed lookup table responds to 0/1/2/3-compressor and heating states. In Auto mode, proportional temperature trim and damper-position speed boost fine-tune ventilation in real time.
Driven via industrial serial fieldbus to the VFD — not a simple on/off relay.
COMPRESSORS
🔄

Up to 3 Staged Compressors

Independently staged compressors with automatic rotation scheduling — distributing runtime evenly to extend equipment life, rather than always running the same unit first.
Heater control includes a safety interlock: never runs simultaneously with active cooling.
HUMIDITY CONTROL
💧

Humidifier / Dehumidifier

Mutual-exclusion safety logic prevents the humidifier and dehumidifier from ever running against each other. Configurable hysteresis per control loop prevents short-cycling.
Hysteresis configurable independently for every control loop.
📈

Setpoint Ramping — Smooth, Not Sudden

Every setpoint change — temperature, humidity, or CO₂ — transitions gradually at a configurable rate instead of jumping instantly to the new target. This isn't a minor convenience feature: sudden setpoint jumps shock both the mechanical systems (compressor short-cycling, damper slamming) and the biological system in the room (mycelium and fruiting bodies respond poorly to abrupt environmental shifts).

Configurable Rate Per ParameterSet independent ramp rates for temperature (°C/hour), humidity (%/hour), and CO₂ (ppm/hour)
Avoids Mechanical Shock-LoadingGradual transitions reduce compressor short-cycling and abrupt damper/VFD movement
Avoids Biological Shock-LoadingSmooth environmental transitions instead of sudden shifts that stress mycelium and fruiting bodies
Works With Startup Anti-Jerk ProtectionIndependently configurable startup delay per output staggers compressor/heater inrush current after a power interruption
Remote Monitoring & Analytics

Mobile Control & Scientific Graphs

Full parameter control from a dedicated smartphone app or secure web dashboard — plus scientific-grade trend graphing for analyzing exactly how your grow room behaved over any time window.

Live Mobile DashboardDedicated smartphone app with live readings, manual override, and full parameter control from anywhere
Secure Web DashboardAccessible from any modern browser — no app install required for desktop access
Multi-Device Fleet ViewMonitor and manage every connected AHU unit from one account
Role-Based Access ControlAdministrator, supervisor, and operator roles with different permission levels
Scientific Trend GraphsHistorical CO₂, RH and temperature charts with setpoint vs actual vs ramp-effective overlays
On-Panel HMI TouchscreenFull local operation independent of network connectivity — core control runs even if the internet is down
Local-Network (LAN) OperationCore control functions do not require internet access — only remote/cloud features do
Live Device DiagnosticsCommunication health, firmware version, and uptime visible remotely at all times
Certifications

Built on Certified Industrial Components

The system is built on industrial control components carrying standard regulatory certifications from their respective manufacturers.

🇪🇺
CE Marked
🇬🇧
UKCA Marked
🇺🇸
FCC Part 15 Class B
♻️
RoHS Compliant
✅
UL Recognized (HMI)
Note: Certifications reflect standard, publicly documented compliance typical of the component class used (PLC core controller and Delta Electronics HMI panel). Exact certificate numbers and model-specific scope should be verified against the original component manufacturer's datasheets before use in any regulatory submission, tender, or compliance filing. 📄 View full certification details in the datasheet →
📄
Contol-X Grow Room AHU Controller — Product Document & Datasheet Full feature list, compatibility table, technical specifications, and certifications in one PDF.
⬇️ Download PDF
